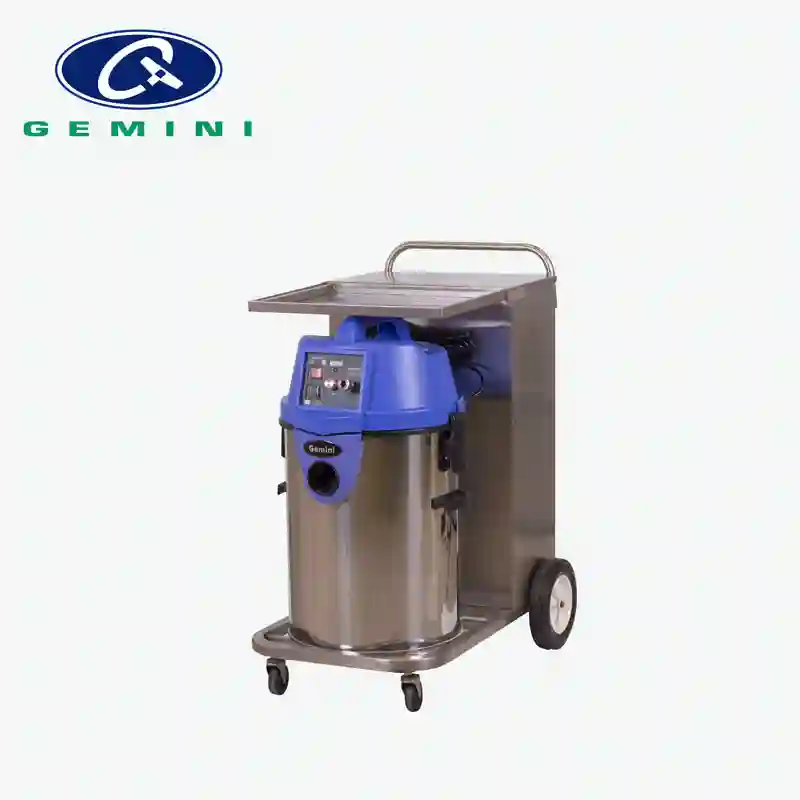

VI-7010(1AB) Mobile Dust Extractor
VI-7010(1AB)
Motor : Single 2-stage
Body (Container Material) : SUS
Max. Air Flow (CFM) : 106
Max. Vacuum Pressure(kPa) : 25
| Model No. | VI-7010(1AB) |
| Description | Mobile dust extractor Built-in air quick coupler connector for auto-start and stop |
| Motor | Single 2-stage |
| Speed Option | Stepless speed regulation |
| Voltage(V) | 100-127/ 220-240 |
| Body (Container Material) | SUS |
| Rated power (W) | 1150 |
| Max. Air Flow (CFM) | 106 |
| Max. Vacuum Pressure(kPa) | 25 |
| Suction Power(W) | 280 |
| Number Of Filters | 3(Cloth filter+ M-class washable PET cartridge filter+Paper dust bag) |
| Cartridge Filter Area (cm²) | 4400 |
| Cable Length (m) | 5 |
| Tank Capacity (l)(Dry/ Wet) | 40/24 |
| Dust Bag Capacity (l) | 20.5 |
| Weight (kg) | 27.5 |
| Length x Width x Height (mm) | 557X 430 X 837 |
| Carton Size(mm) | 560 X 480 X 790 |
| Certification | CB/CCC |
Standard
Optional
